Stock #:
2763-9790
Catalogue #:
1LTEW001.5IE

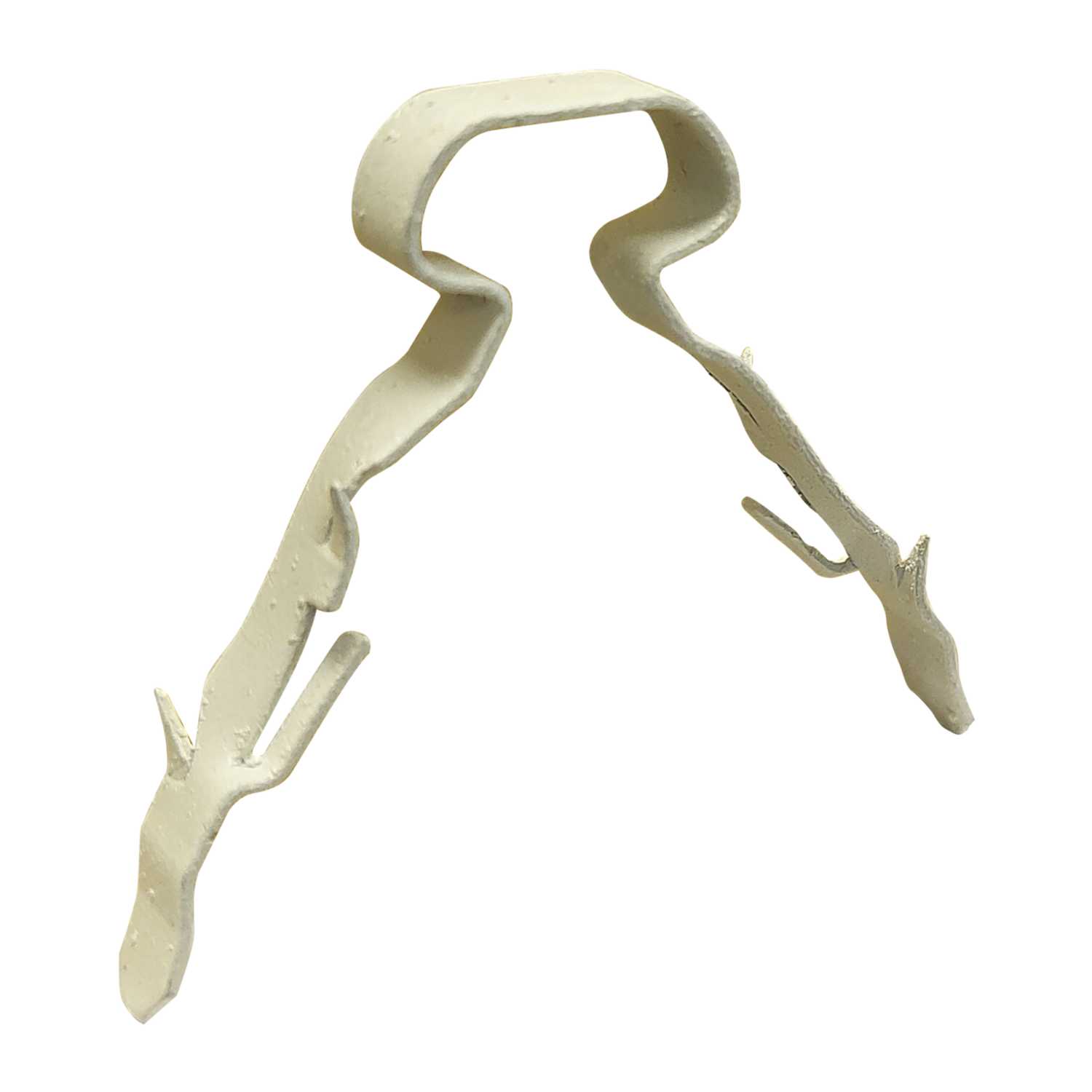

| Compliant with 18th Edition and Fire Rated Cable Fixings [BS 7671]. Fire resistant to 90 and 120 minutes, meeting BSI and DIN classifications. Smoke emission tested to London Underground Standard. Over 1,200°C melting point. Salt spray tested to 1,000 hours. Corrosion resistant and UV stable. Suitable for all substrates. Supports tensile loads of 24kg. | |
| Available Options | Available in Grey |
|---|---|
| Cable Size | 1.5mm² |
| Colour | White |
| Compliance | UKCA, CE |
| Depth | 4.5mm |
| Dimensions | (H)32 mm x (W)36 mm x (D)4.5 mm |
| Height | 32mm |
| Material | Steel |
| Packaging Types | Pack |
| Product Range | T&E Clip |
| Size | 10mm x 5mm |
| Standards | BS 7671:Amendment 3, BS 7671:18th Edition 2018, BS EN 50200 PH120, BS 8519:2010, DIN 4102-12 E90 |
| Unspsc | 39121702 |
| Unspsc V13 | 39121702 |
| Unspsc V18 | 39121702 |
| Unspsc V22 | 39121702 |
| Weight | 0.23kg |
| Width | 36mm |
