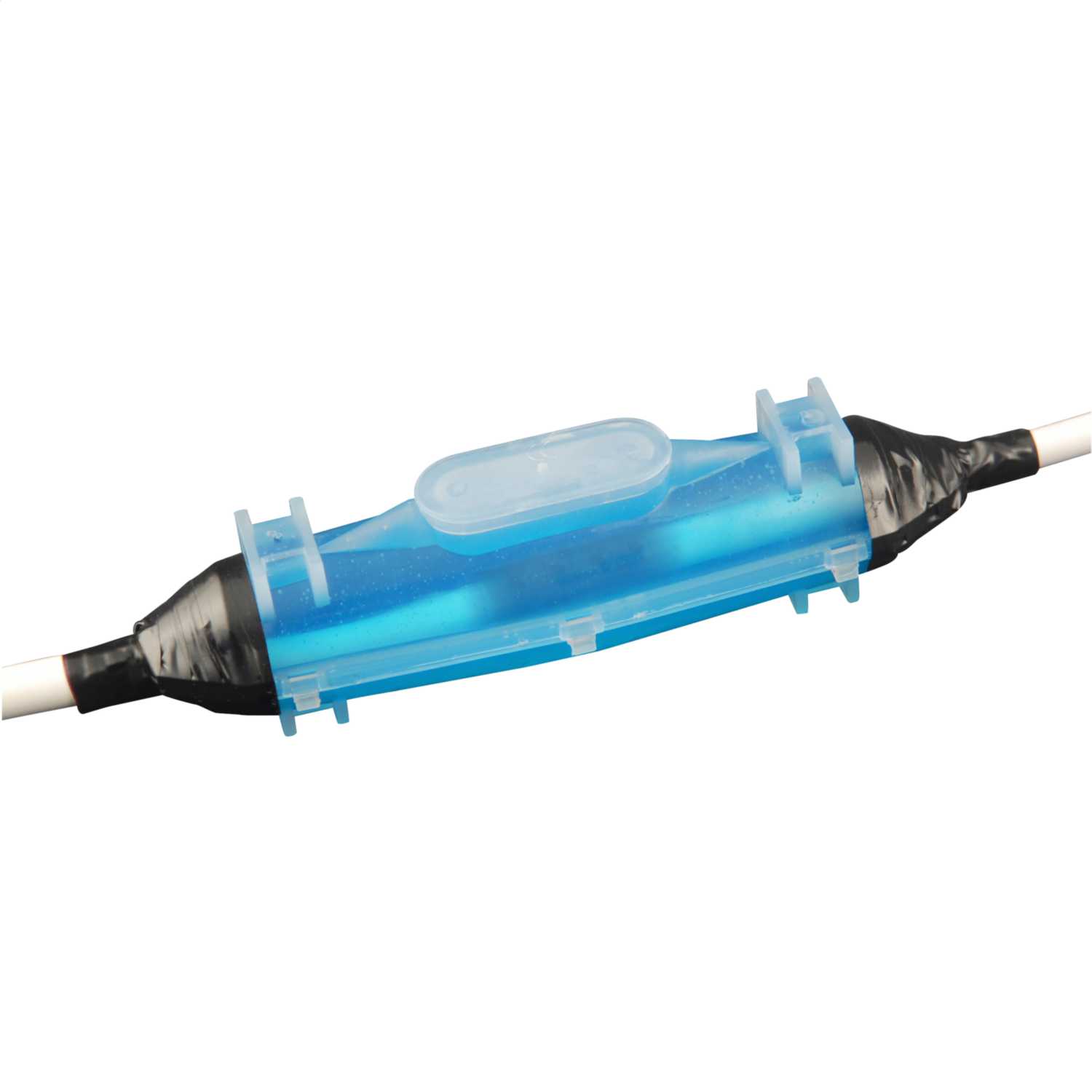

F4P 25mm 4 Core SWA Jointing Kit

F4p logo 201720230109 2556 1gcv3z7


Stock #: 0410-1853
Catalogue #: MJ25ARM4C1625

Specification

Supplied with jointing terminal suitable for cables up to 16mm², for thicker cables up to 25mm² use suitable terminal or straight through crimp [not supplied]. Joints are able to absorb external shock without cracking or fracturing. The extreme stickiness of the insulation, together with its softness allow it to transmit water pressure for installation at high depths. Joints are completely non-toxic, safe, re-enterable even after long periods. Quick cross linking gel [only 10 minutes at 23°C]. Extremely adherent and tight sealing. No shelf life.
Available Options Alternative Sizes Available
Additional Magic Gel Packs Available Separately
Cable Size 25mm²
Cable Size Range 2.5 - 25mm²
Colour Transparent
Diameter 55mm
Dimensions (L)215 mm x (Dia)55 mm
Guarantee 1 Year
IP Rating IP68
Kit Contents Plastic Shell; Bi-Component Magic Gel; Earth Bonding Kit; Mechanical Connectors; Sealing Tape
Length 215mm
Logistics Partner NONE
Material Plastic/Bi-Component Gel
Operating Temperature 90°C
Packaging Types Kit
Product Range Magic Joint
Similar Stock No
Standards CEI EN 50393, CEI 20-33, CEI 64-8 Class 2
Suitable For Extruded Cables 0.6/1kV up to 4 Core 25mm²
Unspsc 39121721
Unspsc V13 39121452
Unspsc V18 39121452
Unspsc V22 39121452
Voltage Rating 1000V
Weight 0.579kg
