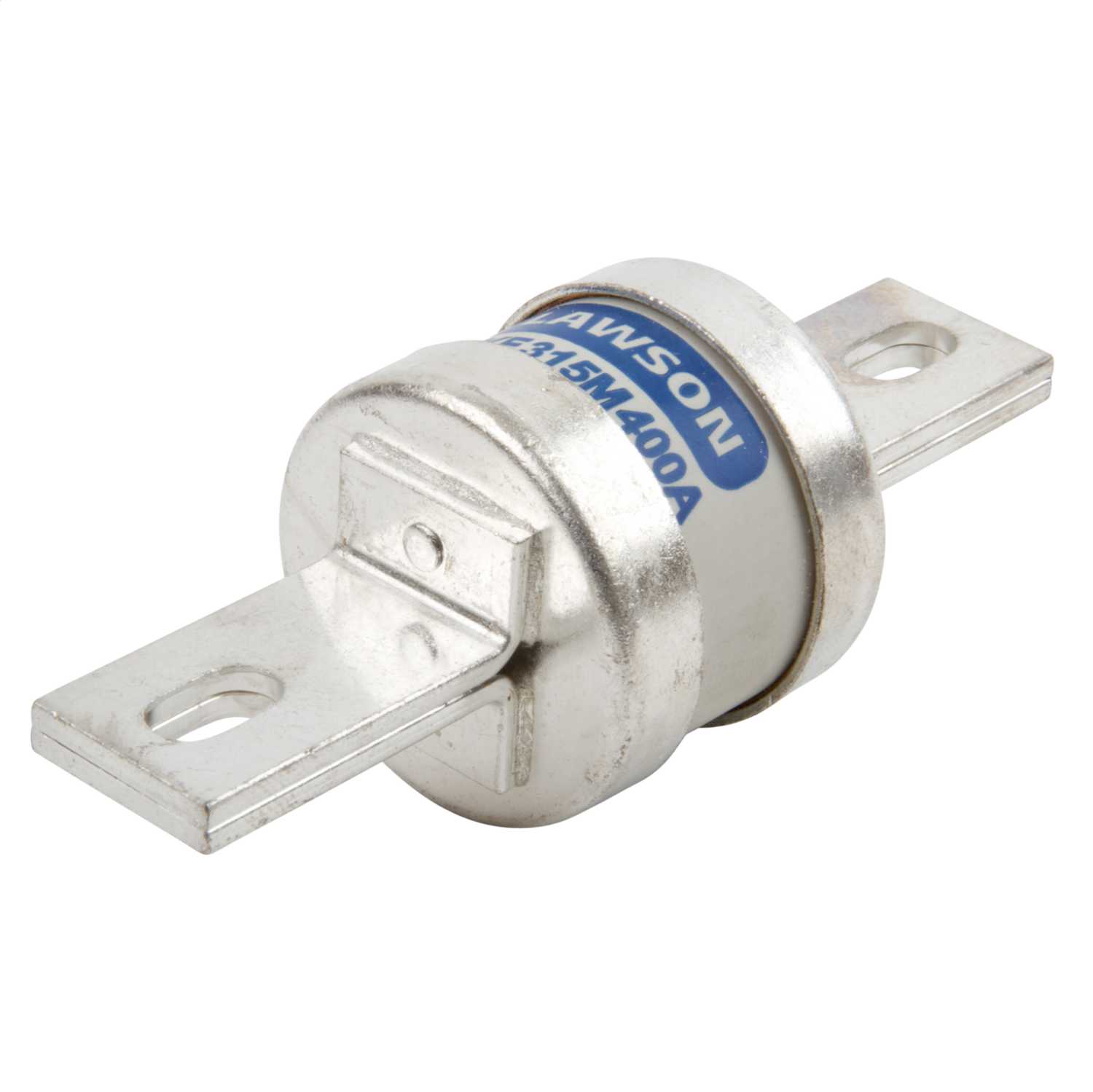

Lawson Fuses 315A TKF HRC Fuse 400A Motor Rated (Sold in 1's)

Lawson fuses logo20181019 2741 4e6mgy


Stock #: 0013-2595
Catalogue #: TKF315M400

Specification

Breaking range and utilisation category: gM. BS 88 reference: B3.
Available Options Different Amp Ratings Available
Colour Blue/White
Compliance CE
Current Rating 315A
Diameter 51mm
Dimensions (L)137 mm x (Dia)51 mm
Fixing Centres 111mm
Fuse Reference TKF
Guarantee 1 Year
Length 137mm
Packaging Types Box
Rated Breaking Capacity 80kA AC
Rated Voltage 415V AC
Standards IEC 60269-2, BS 88-2
Type N&T
Unspsc 39121611
Weight 0.24000kg
