Stock #:
2264-3332
Catalogue #:
MJP300

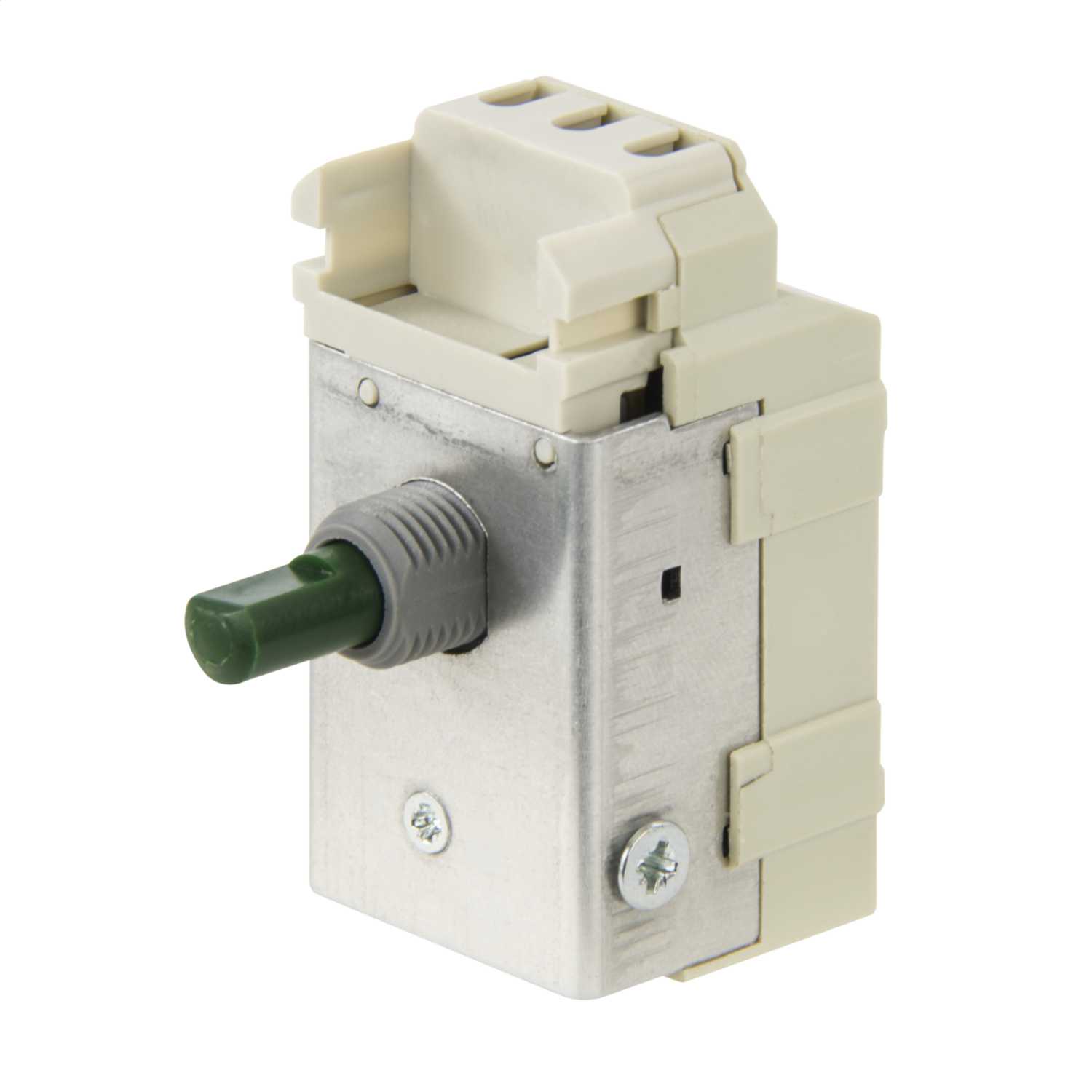

| Adjustable minimum brightness setting and choice of driving modes. Suitable for many dimmable LED lamps. Maximum load rating: LED; 300W [Halogen; 500W]. Intended applications: Domestic lighting circuits including many dimmable LEDs [Max 30 LEDs]. | |
| Colour | Cream |
|---|---|
| Compliance | UKCA, CE |
| Current Rating | 2.2A |
| Depth | 42mm |
| Dimensions | (H)52 mm x (W)26 mm x (D)42 mm |
| Finish | Cream |
| Guarantee | Lifetime |
| Height | 52mm |
| Lamp Type | LED GLS Halogen |
| Logistics Partner | NONE |
| Mounting | Modular |
| Number Of Gangs | 1 |
| Number Of Modules | 1 |
| Number Of Terminals | 3 |
| Number Of Ways | 2 |
| Operation Type | Push On / Off |
| Packaging Types | Bag |
| Power Rating | 300W |
| Product Range | V-Pro |
| Punchout | No |
| Similar Stock | No |
| Standards | BS EN 60669-2-1 |
| Terminal Capacity Earth | 3 x 1.5mm² |
| Terminal Capacity Live Neutral | 3 x 1.5mm² |
| Unspsc V13 | 39122206 |
| Unspsc V18 | 39122206 |
| Unspsc V22 | 39122206 |
| Unspsc V24 | 39122206 |
| Voltage Rating | 250V |
| Weight | 0.3kg |
| Width | 26mm |
