Stock #:
2830-6276
Catalogue #:
F4PQFC4P

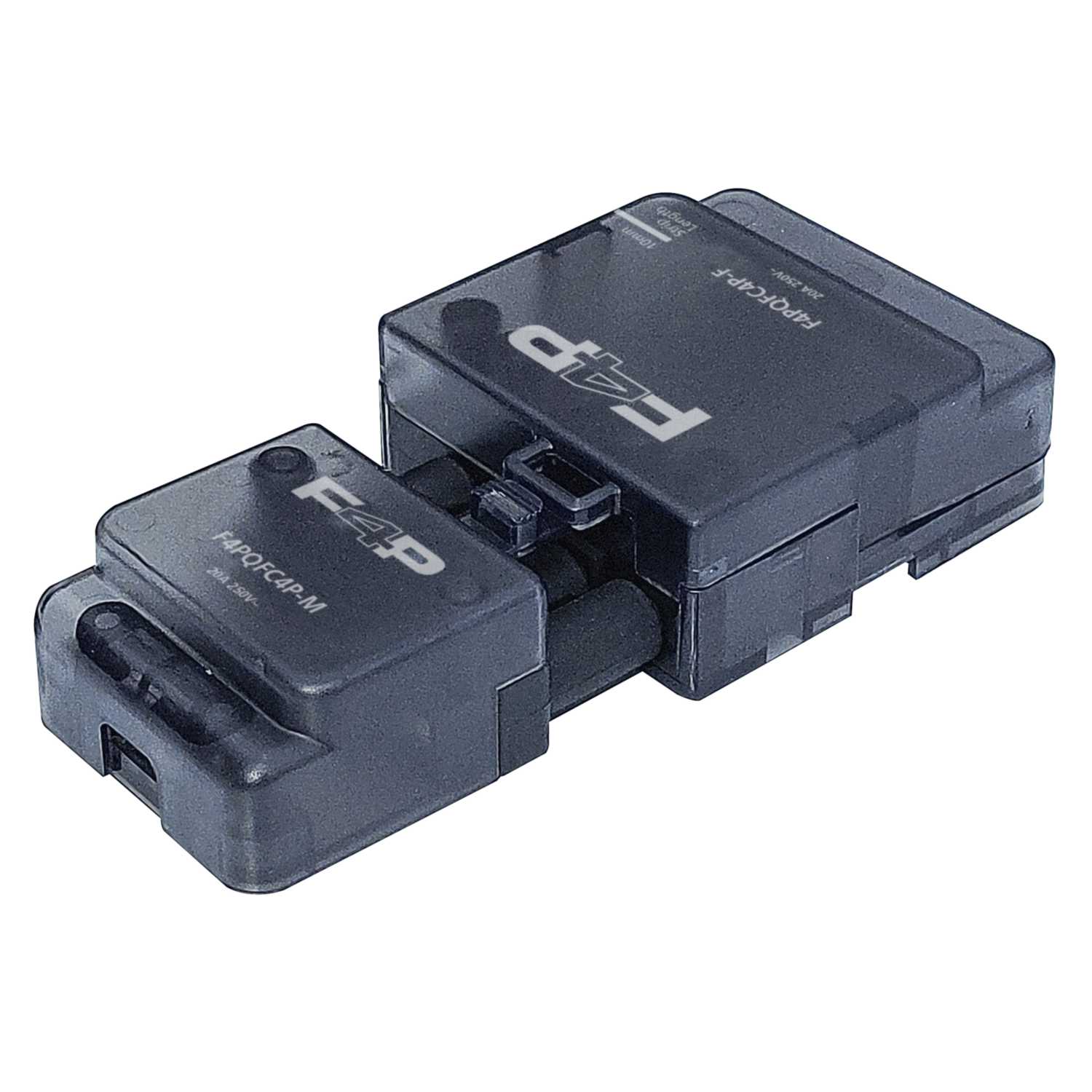

| Easy lock and release system. Screwed terminals. L, PE, N, L1 and LOOP terminals. Ideal for emergency lighting connections. Suitable for stranded and solid cables up to 2.5mm² max. | |
| Colour | Black |
|---|---|
| Compliance | UKCA, CE |
| Depth | 23mm |
| Dimensions | (L)113 mm x (W)55 mm x (D)23 mm |
| Finish | Black |
| Guarantee | 1 Year |
| IP Rating | IP20 |
| Length | 113mm |
| Logistics Partner | NONE |
| Material | Transparent PC Cover and Nylon Base |
| Maximum Operating Temperature | +40°C |
| Minimum Operating Temperature | -5°C |
| Number Of Poles | 4 Pole |
| Packaging Types | Each |
| Product Range | Quick Connectors |
| Punchout | No |
| Similar Stock | No |
| Standards | EN 61535 |
| Suitable For | Emergency Lighting Connections and Stranded and Solid Cables up to 2.5mm² max |
| Unspsc V13 | 39121402 |
| Unspsc V18 | 39121402 |
| Unspsc V22 | 39121402 |
| Unspsc V24 | 39121402 |
| Voltage Rating | 250V |
| Weight | 0.079kg |
| Width | 55mm |
