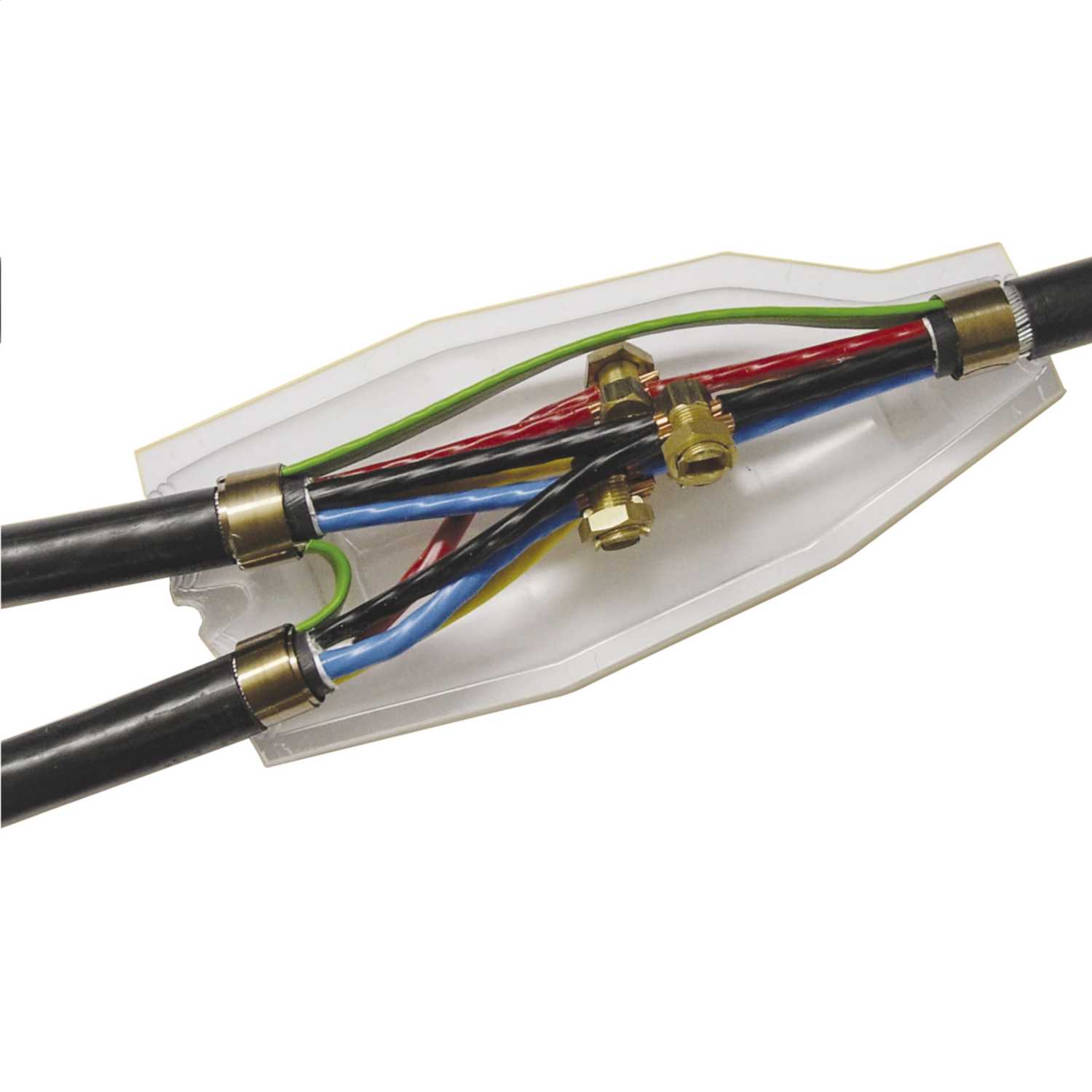

F4P SB50 25-50mm Branch Resin Joint Kit for Cables up to 50mm 4 Core

F4p logo 201720230109 2556 1gcv3z7


Stock #: 0310-0705
Catalogue #: SB50

Specification

Polycarbonate construction which results in a crystal clear UV resistant moulding. Very high-impact strength, even at low temperatures, flame retardant material. Earth bonding kit and mechanical connectors included. Supplied with easy to use 2 part resin system. Pre-filled packs ensure the correct mix ratio every time. Suitable for voltages up to 3.6kV. Installation instructions with clear drawings allow for quick and easy install. 1 year guarantee refers to resin pack supplied.
Available Options Alternative Sizes Available

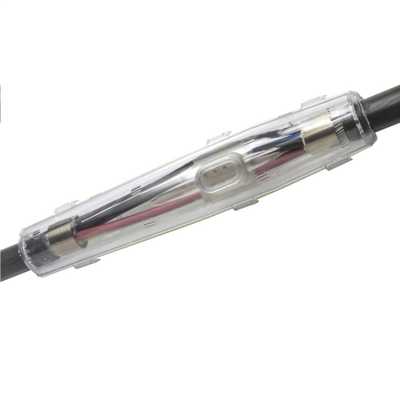

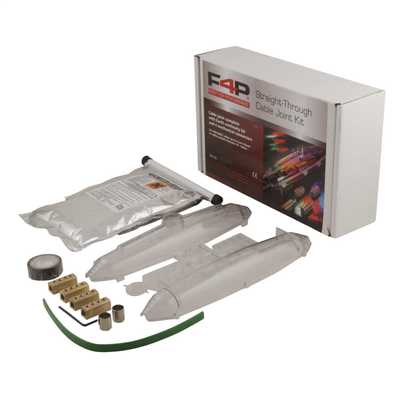

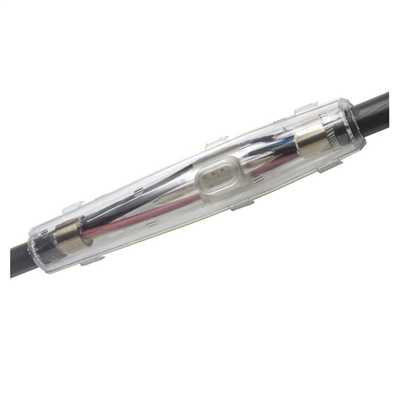

Straight Through Joint Options Available
Additional Resin Packs Available
Cable Size 50mm²
Cable Size Range 25 - 50mm²
Colour Transparent
Dimensions (L)340 mm x (H)120 mm
Guarantee 1 Year
Height 120mm
Kit Contents Polycarbonate Shell Resin Pack Earth Bonding Kit Mechanical Connectors Safety Gloves Sealing Tape
Length 340mm
Logistics Partner NONE
Material Polycarbonate
Packaging Types Kit
Similar Stock No
Standards IEC 50393-11:2006
Suitable For Main Cables up to 4 Core 50mm² and Branch Cables up to 4 Core 35mm²
Unspsc 39121452
Unspsc V13 39121452
Unspsc V18 39121452
Unspsc V22 39121452
Voltage Rating 3600V
Weight 4.196kg
