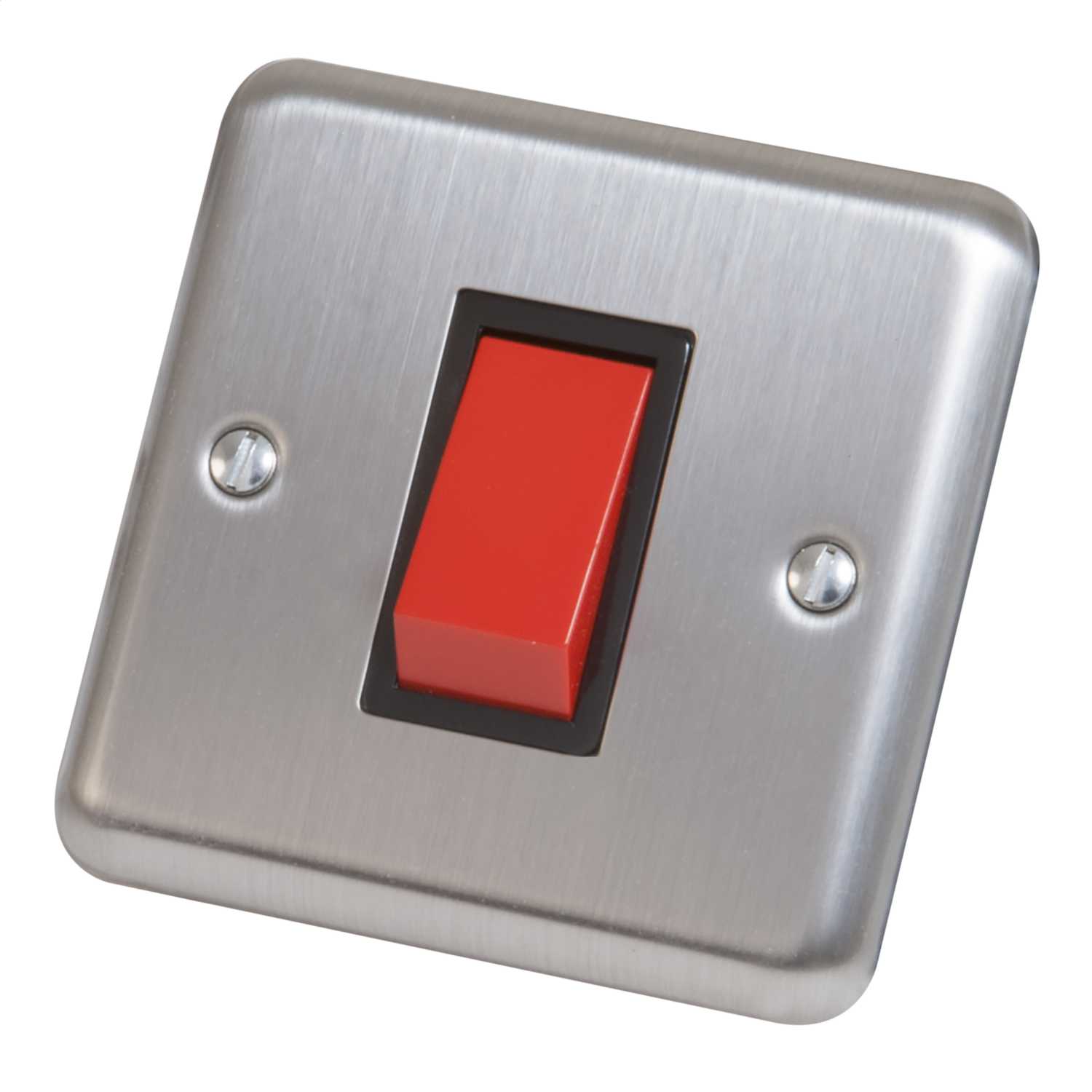

Stock #:
0338-4571
Catalogue #:
XS45SB
| Faceplate depth: 7mm. Recommended back box depth: 35mm. Maximum load rating: 45A Cooker switch. Intended applications: Domestic power supply. | |
| Available Options | Alternative Finishes Available |
|---|---|
| Colour | Chrome |
| Compliance | CE |
| Current Rating | 45A |
| Depth | 35mm |
| Dimensions | (H)86 mm x (W)86 mm x (D)35 mm |
| Finish | Matt |
| Fixing Centres | 60.3mm |
| Guarantee | 10 Years |
| Height | 86mm |
| Insert Colours | Red |
| Material | Steel |
| Mounting | Wall |
| Mounting Depth | 35mm |
| Neon | No |
| Number Of Poles | Double Pole |
| Number Of Terminals | 6 |
| Obsolete Iso | 2021-12-16 |
| Packaging Types | Pack |
| Shape | Curved Edge |
| Standards | BS EN 60669-1 |
| Switched Unswitched | Switched |
| Terminal Capacity Earth | 2 x 10mm² |
| Terminal Capacity Live Neutral | 2 x 10mm² |
| Unspsc | 39122226 |
| Voltage Rating | 250V |
| Weight | 0.24kg |
| Width | 86mm |
| With Socket | No |
