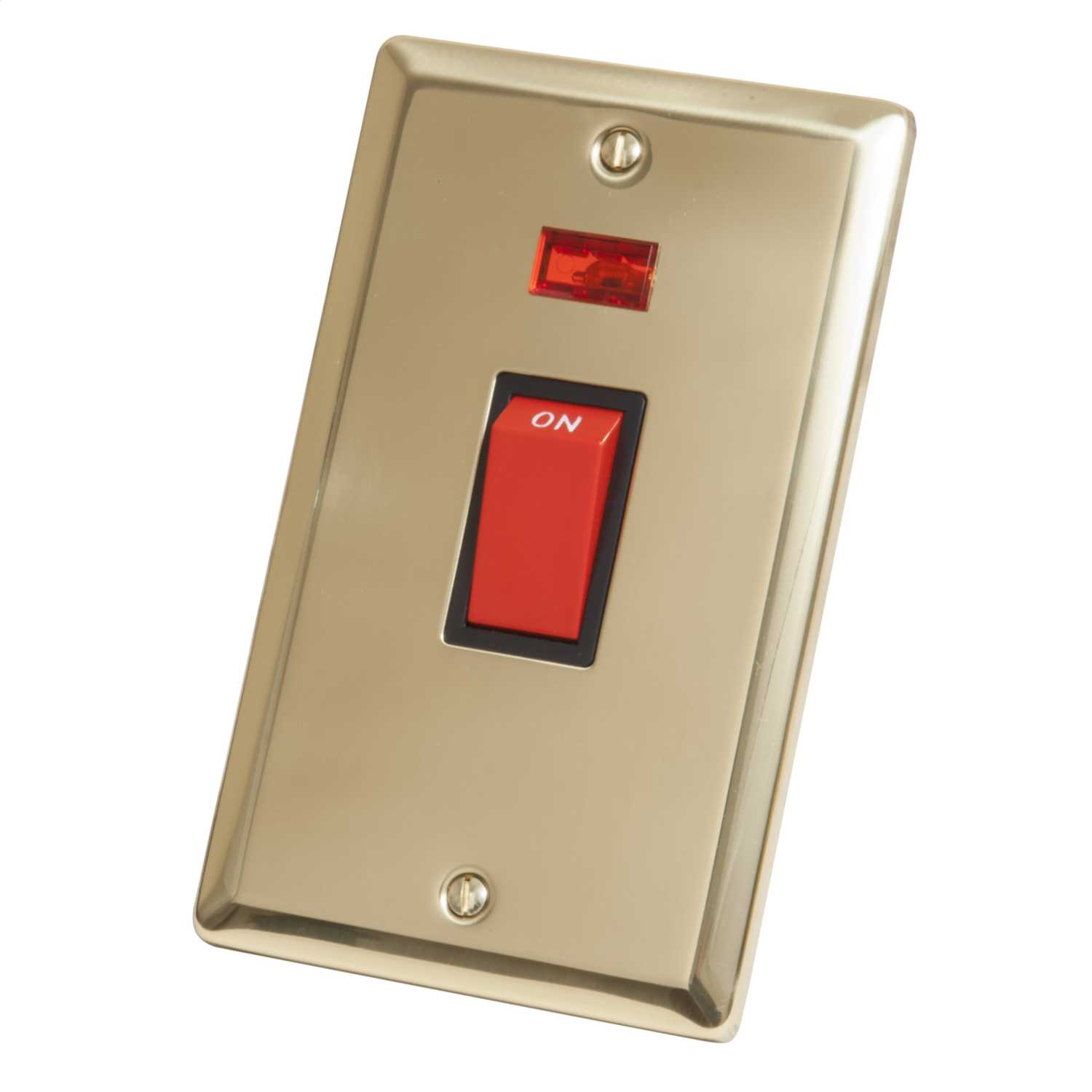

Varilight 45 Amp Double Pole Cooker Switch on Vertical Double Plate With Neon Power Indicator

Cefco xv45nb20230109 2556 1j916kr
Varilight logo feb2020230109 2556 h8y6dh


Stock #: 0338-4757
Catalogue #: XV45NB

Specification

Bevelled edge faceplate. Faceplate depth: 8mm. Recommended back box depth: 35mm. Maximum load rating: 45A Cooker switch. Intended applications: Domestic power supply.
Available Options Alternative Finishes Available
Colour Brass
Compliance CE
Current Rating 45A
Depth 35mm
Dimensions (H)150 mm x (W)91 mm x (D)35 mm
Finish Victorian
Fixing Centres 120.6mm
Guarantee 10 Years
Height 150mm
Insert Colours Red
Material Brass
Mounting Wall
Mounting Depth 35mm
Neon Yes
Number Of Poles Double Pole
Number Of Terminals 6
Obsolete Iso 2017-04-21
Packaging Types Pack
Shape Bevelled Edge
Standards BS EN 60669-1
Switched Unswitched Switched
Terminal Capacity Earth 2 x 10mm²
Terminal Capacity Live Neutral 2 x 10mm²
Unspsc 39122200
Voltage Rating 250V
Weight 0.24kg
Width 91mm
With Socket No
