Stock #:
0410-1850
Catalogue #:
MJ10ARM4C10

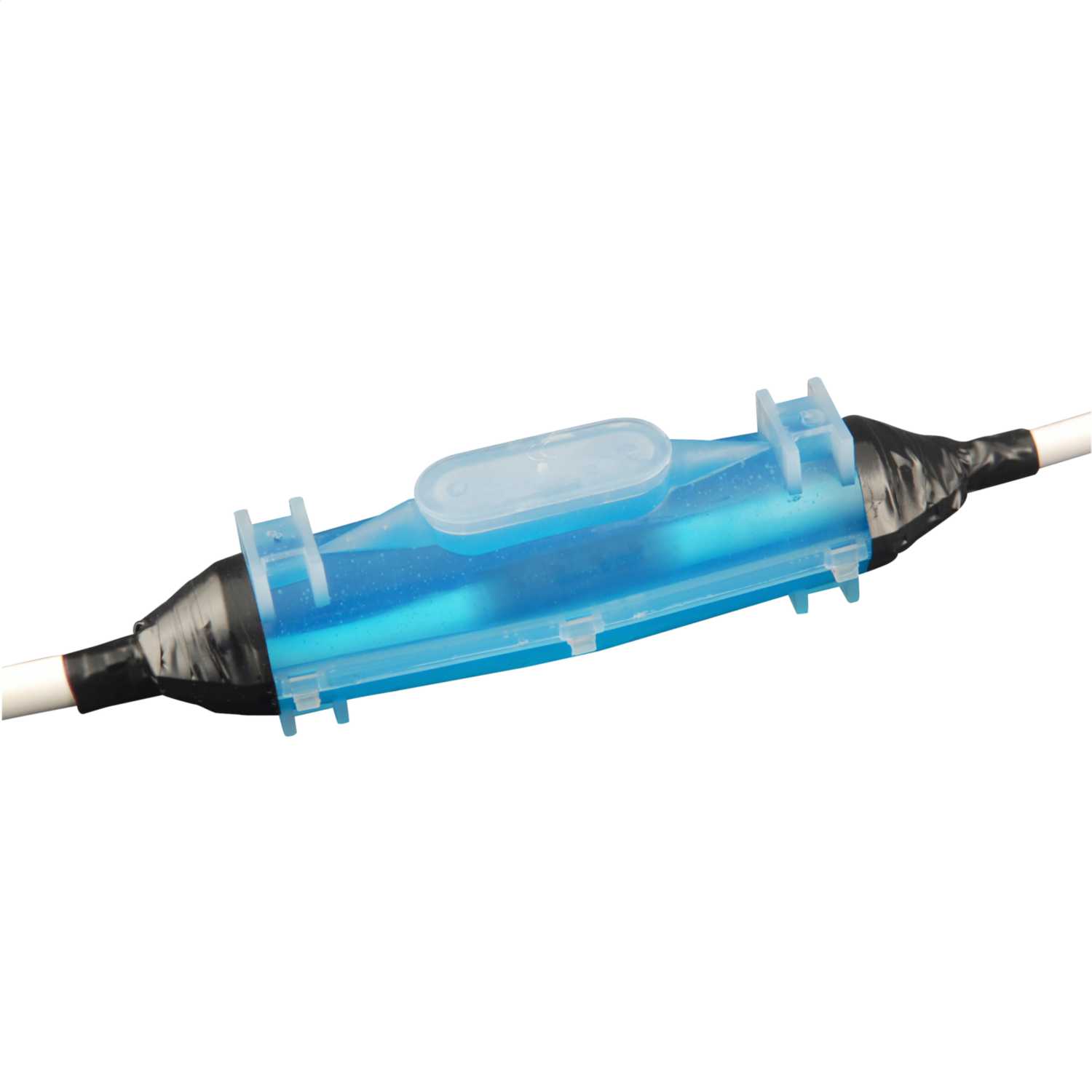

| Joints are able to absorb external shock without cracking or fracturing. The extreme stickiness of the insulation, together with its softness allow it to transmit water pressure for installation at high depths. Joints are completely non-toxic, safe, re-enterable even after long periods. Quick cross linking gel (only 10 minutes at 23°C). Extremely adherent and tight sealing. No shelf life. | |
| Available Options |
Alternative Sizes Available Additional Magic Gel Packs Available Separately |
|---|---|
| Cable Size | 10mm² |
| Cable Size Range | 1.5 - 10mm² |
| Colour | Transparent |
| Diameter | 50mm |
| Dimensions | (L)180 mm x (Dia)50 mm |
| Guarantee | 1 Year |
| IP Rating | IP68 |
| Kit Contents | Plastic Shell; Bi-Component Magic Gel; Earth Bonding Kit; Mechanical Connectors; Sealing Tape |
| Length | 180mm |
| Logistics Partner | NONE |
| Material | Plastic/Bi-Component Gel |
| Operating Temperature | 90°C |
| Packaging Types | Kit |
| Product Range | Magic Joint |
| Similar Stock | No |
| Standards | CEI EN 50393, CEI 20-33, CEI 64-8 Class 2 |
| Suitable For | Extruded Cables 0.6/1kV up to 4 Core 10mm² |
| Unspsc | 39121721 |
| Unspsc V13 | 39121452 |
| Unspsc V18 | 39121452 |
| Unspsc V22 | 39121452 |
| Voltage Rating | 1000V |
| Weight | 0.469kg |
