Stock #:
1453-4974
Catalogue #:
MAGIC BOX 100
| Also suitable for vertical filling. Kit contains enough gel to fill the box completely. Fillings degree of protection IP68. Re-enterable also after long working periods. Non-toxic and safe with no shelf life. | |
| Available Options | Additional Magic Gel Packs Available Separately |
|---|---|
| Cable Size | 20mm² |
| Colour | Grey |
| Compliance | UKCA, CE |
| Depth | 50mm |
| Dimensions | (L)100 mm x (W)100 mm x (D)50 mm |
| Guarantee | 1 Year |
| IP Rating | IP68 |

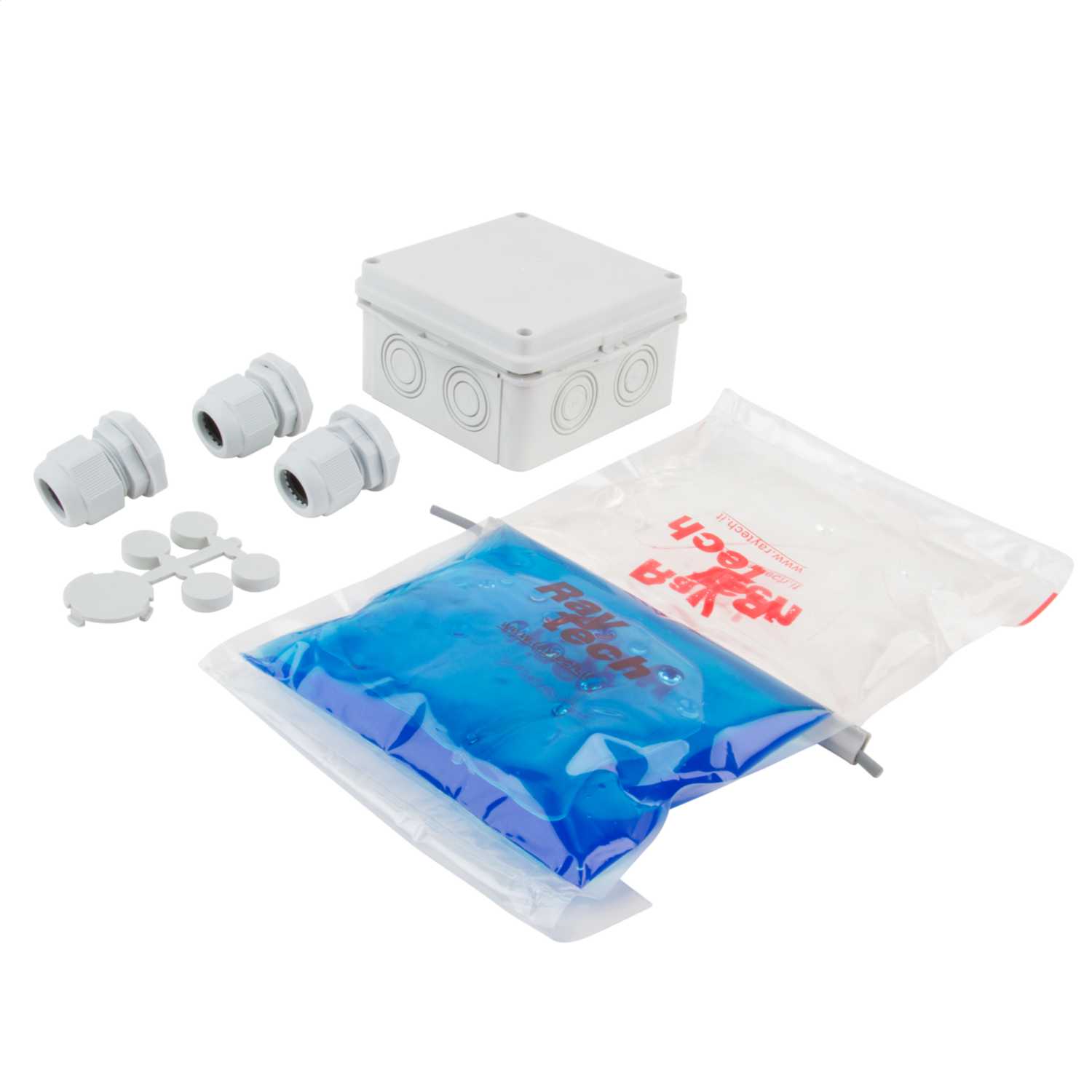

| Kit Contents | 100mm x 100mm x 50mm Adaptable Box; 3 x M25 x 1.5 Glands; Magic Gel Pack; Blanking Caps |
| Length | 100mm |
| Logistics Partner | NONE |
| Material | Plastic/Bi-Component Gel |
| Operating Temperature | 90°C |
| Packaging Types | Kit |
| Product Range | Magic Box |
| Punchout | No |
| Similar Stock | No |
| Standards | CEI EN 50393, CEI 20-33, CEI 64-8 |
| Suitable For | Can Be Used Underground, Full Submersion or Directly Exposed to the Weather |
| Unspsc V13 | 39121452 |
| Unspsc V18 | 39121452 |
| Unspsc V22 | 39121452 |
| Unspsc V24 | 39121452 |
| Weight | 0.751kg |
| Width | 100mm |
