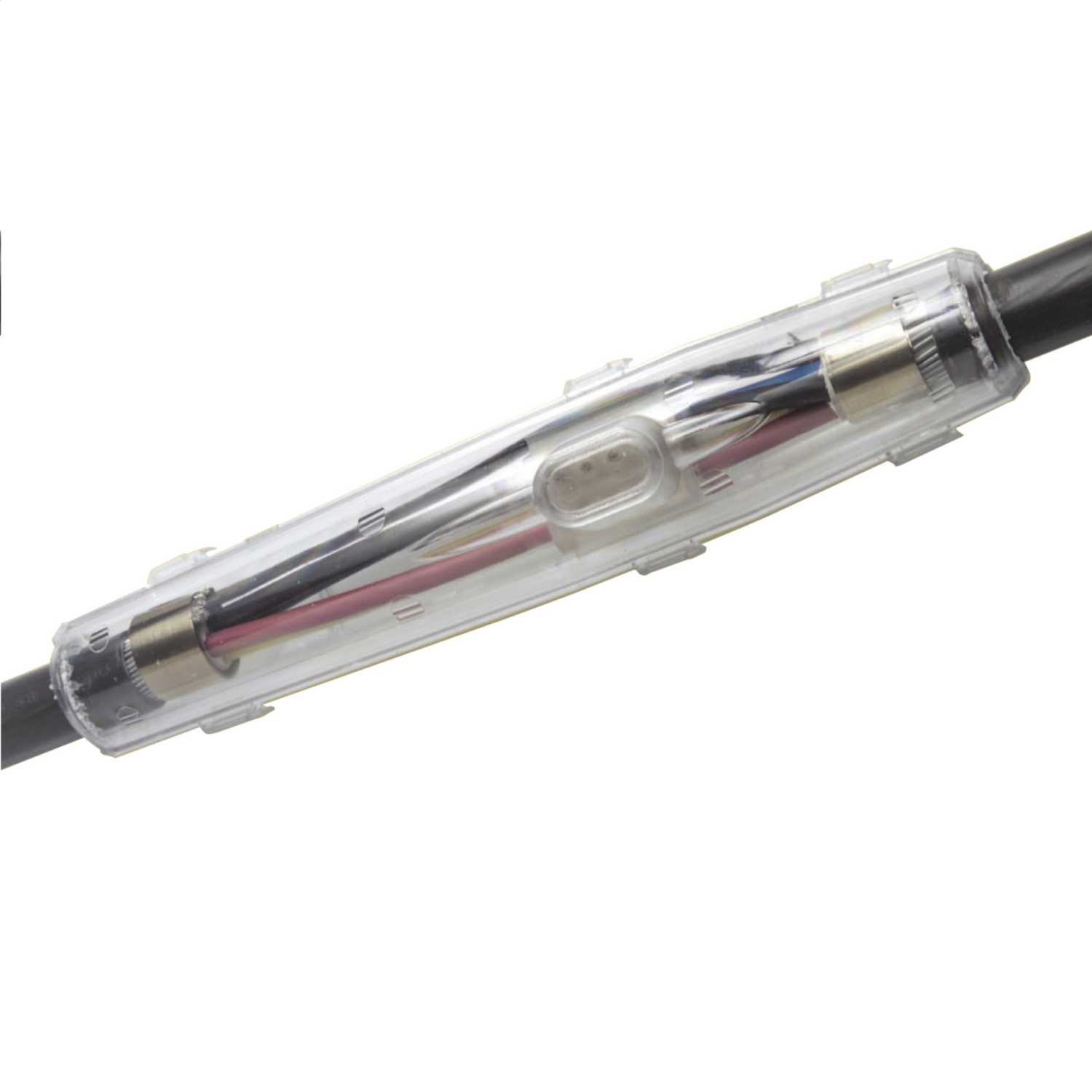

F4P S4 0.75-4mm Straight Resin Joint Kit for Cables up to 4mm 4 Core

F4p logo 201720230109 2556 1gcv3z7


Stock #: 0310-0690
Catalogue #: S4

Specification

Polycarbonate construction which results in a crystal clear UV resistant moulding. Very high-impact strength, even at low temperatures, flame retardant material. Earth bonding kit and mechanical connectors included. Supplied with easy to use 2 part resin system. Pre-filled packs ensure the correct mix ratio every time. Suitable for voltages up to 3.6kV. Installation instructions with clear drawings allow for quick and easy install. 1 year guarantee refers to resin pack supplied.
Available Options Alternative Sizes Available
Branch Joint Options Available
Additional Resin Packs Available
Cable Size 4mm²
Cable Size Range 0.75 - 4mm²
Colour Transparent
Diameter 30mm
Dimensions (L)160 mm x (Dia)30 mm
Guarantee 1 Year
Kit Contents Polycarbonate Shell; Resin Pack; Earth Bonding Kit; Mechanical Connectors; Safety Gloves; Sealing Tape
Length 160mm
Logistics Partner NONE
Material Polycarbonate
Maximum Cable Diameter 21mm
Packaging Types Kit
Similar Stock No
Standards IEC 50393-11:2006
Suitable For Cables up to 4 Core 4mm²
Unspsc 39121452
Unspsc V13 39121452
Unspsc V18 39121452
Unspsc V22 39121452
Voltage Rating 3600V
Weight 0.309kg
